C-FLEX轴承 单头轴承/双头轴承
产品概述
C-FLEX多功能枢轴轴承既可作为简单的振荡单元，也可作为高度敏感的关键元件，满足多样化的应用需求。产品分为单端轴承与双端轴承两种类型，可根据实际安装场景选择。
- 以其高径向和轴向刚度著称
- 有低、中、高扭转弹簧硬度可选
- 通常支持**偏转角+/-30°
- 扭转刚度范围为0.0003磅英寸/度至7.8023磅英寸/度
- 可选的自定义配置

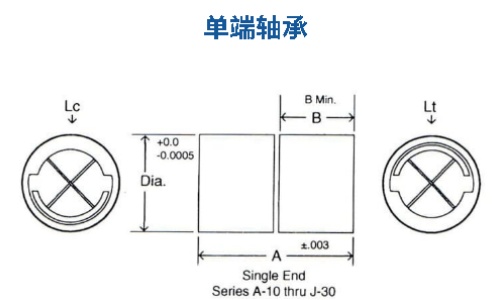

单端轴承参数
| 型号 | 直径 | 扭转弹簧刚度 | 载荷容量（Lc） | 载重能力（轻型） | +0 -.0005 直径 | ±.003 A | B Min |
|---|---|---|---|---|---|---|---|
| A-10 | 1/8 | 0.0003 | 0.95 | 3.80 | .1250 | .200 | .088 |
| A-20 | 1/8 | 0.0018 | 8.90 | 12.70 | .1250 | .200 | .088 |
| A-30 | 1/8 | 0.0148 | 25.30 | 25.30 | .1250 | .200 | .088 |
| B-10 | 5/32 | 0.0004 | 1.40 | 5.60 | .1562 | .250 | .114 |
| B-20 | 5/32 | 0.0037 | 13.70 | 19.60 | .1562 | .250 | .114 |
| B-30 | 5/32 | 0.0296 | 39.30 | 39.30 | .1562 | .250 | .114 |
| C-10 | 3/16 | 0.0007 | 2.00 | 7.80 | .1875 | .300 | .136 |
| C-20 | 3/16 | 0.0060 | 19.50 | 27.90 | .1875 | .300 | .136 |
| C-30 | 3/16 | 0.0482 | 55.80 | 55.80 | .1875 | .300 | .136 |
| D-10 | 1/4 | 0.0018 | 3.60 | 14.20 | .250 | .400 | .184 |
| D-20 | 1/4 | 0.0148 | 35.00 | 50.00 | .250 | .400 | .184 |
| D-30 | 1/4 | 0.1185 | 100.00 | 100.00 | .250 | .400 | .184 |
| E-10 | 5/16 | 0.0037 | 5.70 | 22.80 | .3125 | .500 | .232 |
| E-20 | 5/16 | 0.0296 | 55.00 | 78.60 | .3125 | .500 | .232 |
| E-30 | 5/16 | 0.2367 | 157.10 | 157.10 | .3125 | .500 | .232 |
| F-10 | 3/8 | 0.0065 | 8.40 | 33.60 | .3750 | .600 | .279 |
| F-20 | 3/8 | 0.0482 | 79.10 | 113.00 | .3750 | .600 | .279 |
| F-30 | 3/8 | 0.4002 | 226.00 | 226.00 | .3750 | .600 | .279 |
| G-10 | 1/2 | 0.0148 | 14.40 | 57.40 | .5000 | .800 | .374 |
| G-20 | 1/2 | 0.1185 | 140.00 | 200.00 | .5000 | .800 | .374 |
| G-30 | 1/2 | 0.9486 | 400.00 | 400.00 | .5000 | .800 | .374 |
| H-10 | 5/8 | 0.0286 | 23.00 | 92.00 | .6250 | 1.000 | .469 |
| H-20 | 5/8 | 0.2367 | 221.10 | 315.80 | .6250 | 1.000 | .469 |
| H-30 | 5/8 | 1.8940 | 631.50 | 631.50 | .6250 | 1.000 | .469 |
| I-10 | 3/4 | 0.0482 | 32.40 | 129.40 | .7500 | 1.200 | .564 |
| I-20 | 3/4 | 0.4002 | 317.20 | 435.10 | .7500 | 1.200 | .564 |
| I-30 | 3/4 | 3.2610 | 906.10 | 906.10 | .7500 | 1.200 | .564 |
| J-10 | 1 | 0.1185 | 59.20 | 236.60 | 1.000 | 1.600 | .764 |
| J-20 | 1 | 0.9486 | 566.30 | 809.00 | 1.000 | 1.600 | .764 |
| J-30 | 1 | 7.8023 | 1616.00 | 1616.00 | 1.000 | 1.600 | .764 |

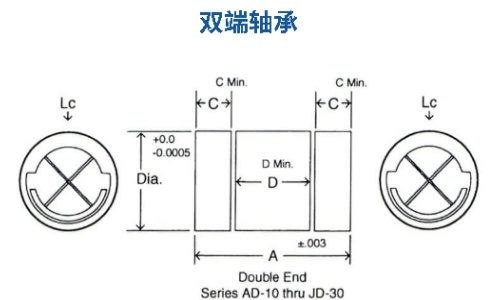

双端轴承参数
| 型号 | 直径 | 扭转弹簧刚度 | 载重能力（Lc） | 载重能力（轻型） | +0 -.0005 直径 | ±.003 A | C min | D min |
|---|---|---|---|---|---|---|---|---|
| AD-10 | 1/8 | 0.003 | 2.30 | 4.60 | .1250 | .200 | .039 | .070 |
| AD-20 | 1/8 | 0.0018 | 17.50 | 25.00 | .1250 | .200 | .038 | .070 |
| AD-30 | 1/8 | 0.0148 | 28.00 | 28.00 | .1250 | .200 | .038 | .070 |
| BD-10 | 5/32 | 0.0004 | 3.50 | 7.00 | .1562 | .250 | .050 | .100 |
| BD-20 | 5/32 | 0.0037 | 28.00 | 40.88 | .1562 | .250 | .050 | .100 |
| BD-30 | 5/32 | 0.0296 | 45.00 | 45.00 | .1562 | .250 | .050 | .100 |
| CD-10 | 3/16 | 0.0007 | 5.00 | 10.00 | .1875 | .300 | .060 | .120 |
| CD-20 | 3/16 | 0.0060 | 40.00 | 60.00 | .1875 | .300 | .060 | .120 |
| CD-30 | 3/16 | 0.0482 | 63.00 | 63.00 | .1875 | .300 | .060 | .120 |
| DD-10 | 1/4 | 0.0018 | 9.00 | 18.00 | .250 | .400 | .083 | .165 |
| DD-20 | 1/4 | 0.0148 | 70.00 | 100.00 | .250 | .400 | .083 | .165 |
| DD-30 | 1/4 | 0.1185 | 115.00 | 115.00 | .250 | .400 | .083 | .165 |
| ED-10 | 5/16 | 0.0037 | 14.00 | 28.00 | .3125 | .500 | .105 | .210 |
| ED-20 | 5/16 | 0.0286 | 110.00 | 150.00 | .3125 | .500 | .105 | .210 |
| ED-30 | 5/16 | 0.2367 | 175.00 | 175.00 | .3125 | .500 | .105 | .210 |
| FD-10 | 3/8 | 0.0065 | 20.00 | 40.00 | .3750 | .600 | .128 | .255 |
| FD-20 | 3/8 | 0.0482 | 160.00 | 220.00 | .3750 | .600 | .128 | .255 |
| FD-30 | 3/8 | 0.4002 | 250.00 | 250.00 | .3750 | .600 | .128 | .255 |
| GD-10 | 1/2 | 0.0148 | 35.00 | 70.00 | .5000 | .800 | .173 | .345 |
| GD-20 | 1/2 | 0.1185 | 280.00 | 380.00 | .5000 | .800 | .173 | .345 |
| GD-30 | 1/2 | 0.9486 | 450.00 | 150.00 | .5000 | .800 | .173 | .345 |
| HD-10 | 5/8 | 0.0296 | 55.00 | 110.00 | .6250 | 1.000 | .210 | .430 |
| HD-20 | 5/8 | 0.2367 | 450.00 | 620.00 | .6250 | 1.000 | .210 | .430 |
| HD-30 | 5/8 | 1.8940 | 700.00 | 700.00 | .6250 | 1.000 | .210 | .430 |
| ID-10 | 3/4 | 0.0482 | 80.00 | 160.00 | .7500 | 1.200 | .263 | .520 |
| ID-20 | 3/4 | 0.4002 | 630.00 | 900.00 | .7500 | 1.200 | .263 | .520 |
| ID-30 | 3/4 | 3.2610 | 1000.00 | 1000.00 | .7500 | 1.200 | .263 | .520 |
| JD-10 | 1 | 0.1185 | 140.00 | 280.00 | 1.000 | 1.600 | .363 | .720 |
| JD-20 | 1 | 0.9486 | 1100.00 | 1500.00 | 1.000 | 1.600 | .363 | .720 |
| JD-30 | 1 | 7.8023 | 1800.00 | 1800.00 | 1.000 | 1.600 | .363 | .720 |
参数注释
1) 扭转弹簧刚度单位：磅英寸/度
2) 载荷容量、载重能力单位：磅
3) 所有尺寸标注单位为英寸
4) 型号后缀10/20/30分别对应低、中、高扭转刚度等级
5) 可根据客户需求提供特殊定制版本，详情请咨询技术支持
